XGS 108, XGS 108w

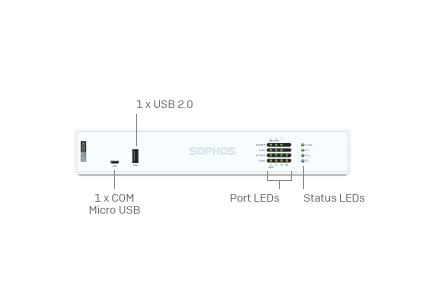

Front View

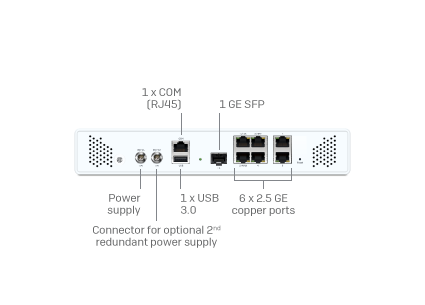

Back View

Environment
  • Power supply External auto-ranging External auto-ranging AC-DC 100-240VAC, 2A@50-60 Hz 12VDC, 5A, 60W Optional second redundant power supply
  • Power consumption 21.5 W/73.36 BTU/hr (108 idle) 25.5 W/87.01 BTU/hr (108w idle) 27 W/92.13 BTU/hr (108 max.) 30 W/102.36 BTU/hr (108w max.)
  • Noise level (avg.) 0 dBA - fanless
  • Operating temperature 0°C to 40°C (operating) -20°C to +70°C (storage)
  • Humidity 10% to 90%, non-condensing
Product Certifications
  • Certifications CB, CE, UKCA, UL, FCC, ISED, VCCI, KC*, BSMI, RCM, NOM, Anatel*, TEC
Performance XGS 108(w)
  • Firewall throughput  12,500 Mbps
  • Firewall IMIX 8,100 Mbps
  • IPS throughput 2,500 Mbps
  • Threat protection throughput 2,500 Mbps
  • NGFW 2,600 Mbps
  • Concurrent connections 4,190,000
  • New connections/sec 53,000
  • IPsec VPN throughput 8,250 Mbps
  • IPsec VPN concurrent tunnels 1,000
  • SSL VPN concurrent tunnels 1,000
  • Xstream SSL/TLS Inspection 800 Mbps
  • Xstream SSL/TLS concurrent connections 12,288
Wireless Specification (XGS 108w only)
  • No. of antennas 2 external
  • MIMO capabilities 2 x 2:2
  • Wireless interface Wi-Fi 6 (802.11ax) 2.4 GHz/5 GHz concurrent
Physical interfaces
  • Storage(local quarantine/logs) 64 GB UFS 2.1
  • Ethernet interfaces (fixed) 6 x 2.5 GE copper 1 x SFP fiber
  • Management ports 1 x COM RJ45 1 x Micro-USB (cable incl.)
  • Other I/O ports 1 x USB 2.0 (front) 1 x USB 3.0 (rear)
  • Number of expansion slots 0
  • Optional add-on connectivity n/a
Physical specifications
  • Mounting Rackmount kit available (to be ordered separately)
  • Dimensions: Width X height X depth 200 x 44 x 180 mm
  • Weight 1.8 kg/3.97 lbs (unpacked) 2.4 kg/5.29 lbs (packed) (w-model minimally more)
