XGS 118, XGS 118w

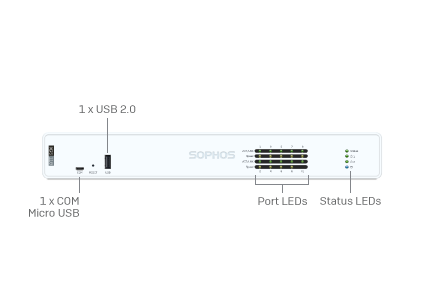

Front View

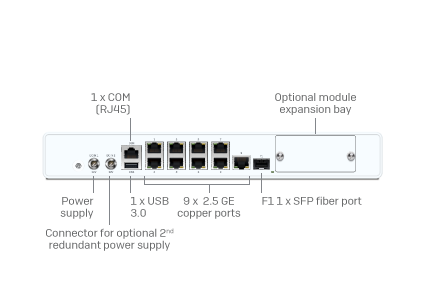

Back View

Environment
  • Power supply External auto-ranging External auto-ranging 100-240VAC, 2A@50-60 Hz 12VDC, 5.42A, 65W Optional second redundant power supply
  • Power consumption 25.5 W/87.01 BTU/hr (118 idle) 29.5 W/100.66 BTU/hr (118w idle) 28 W/95.54 BTU/hr (118 max.) 34 W/116.01 BTU/hr (118w max.)
  • Noise level (avg.) Typical/Max. operation XGS 118 - 17.3/26.9 dBA XGS 118(w) - 19.5/31 dBA
  • Operating temperature 0°C to 40°C (operating) -20°C to +70°C (storage)
  • Humidity 10% to 90%, non-condensing
Product Certifications
  • Certifications CB, CE, UKCA, UL, FCC, ISED, VCCI, KC*, BSMI, RCM, NOM, Anatel*, TEC
Performance XGS 118(w)
  • Firewall throughput  15,500 Mbps
  • Firewall IMIX 11,000 Mbps
  • IPS throughput 3,500 Mbps
  • Threat protection throughput 3,250 Mbps
  • NGFW 3,950 Mbps
  • Concurrent connections 5,500,000
  • New connections/sec 62,650
  • IPsec VPN throughput 13,000 Mbps
  • IPsec VPN concurrent tunnels 1,500
  • SSL VPN concurrent tunnels 1,250
  • Xstream SSL/TLS Inspection 1,100 Mbps
  • Xstream SSL/TLS concurrent connections 18,432
Wireless Specification (XGS 118w only)
  • No. of antennas 2 external
  • MIMO capabilities 2 x 2:2
  • Wireless interface Wi-Fi 6 (802.11ax) 2.4 GHz/5 GHz concurrent
Physical interfaces
  • Storage(local quarantine/logs) 64 GB UFS 2.1
  • Ethernet interfaces (fixed) 9 x 2.5 GE copper 1 x SFP fiber
  • Power-over-Ethernet (fixed) 0
  • Management ports 1 x COM RJ45 1 x Micro-USB (cable incl.)
  • Other I/O ports 1 x USB 2.0 (front) 1 x USB 3.0 (rear)
  • Number of expansion slots 1
  • Optional add-on connectivity 5G module (Gen.2)
Physical specifications
  • Mounting Rackmount kit available (to be ordered separately)
  • Dimensions: Width X height X depth 320 x 44 x 212 mm
  • Weight 2.4 kg/5.29 lbs (unpacked) 3.9 kg/8.60 lbs (packed) (w-model minimally more)
